826662-5
Manufacturer:
TE Connectivity
Mfr.Part #:
826662-5
Datasheet:
Description:

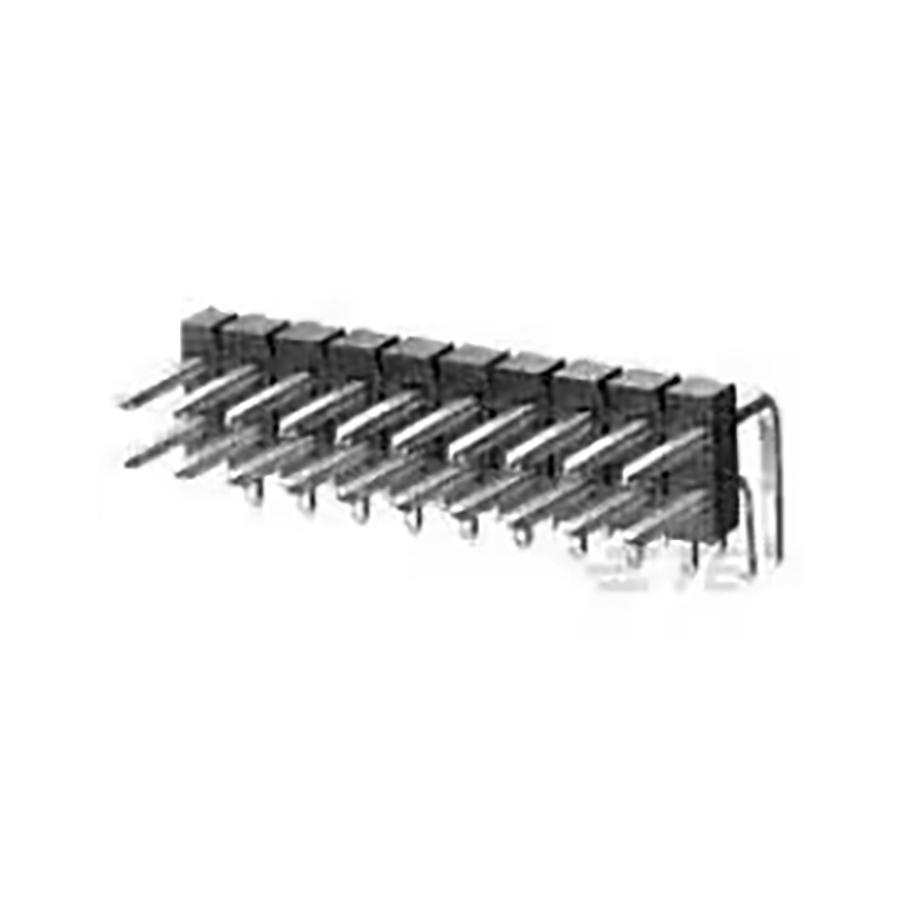

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Tin, Gold |
| Lead Length | 3.19786 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Male |
| Number of Contacts | 10 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | PBT |
| Contact Style | Pin |
| Contact Current Rating | 5 A |
| Housing Color | Green |
| Contact Mating Length | 5.7912 mm |
| Keyed | No |
| PCB Mounting Orientation | Right Angle |
| Plating Thickness | 800 nm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 5.8 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 5.8 mm |
Stock: 581
Distributors
pcbx
pcbxUnit Price$0.92589
Ext.Price$0.92589
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.92589 | $0.92589 |
| 10 | $0.88827 | $8.88270 |
| 25 | $0.85359 | $21.33975 |
| 50 | $0.82026 | $41.01300 |
| 100 | $0.78823 | $78.82300 |
| 300 | $0.75747 | $227.24100 |
| 500 | $0.59244 | $296.22000 |
| 1000 | $0.46337 | $463.37000 |
